Description
Following Screws are to be use with above Plates:

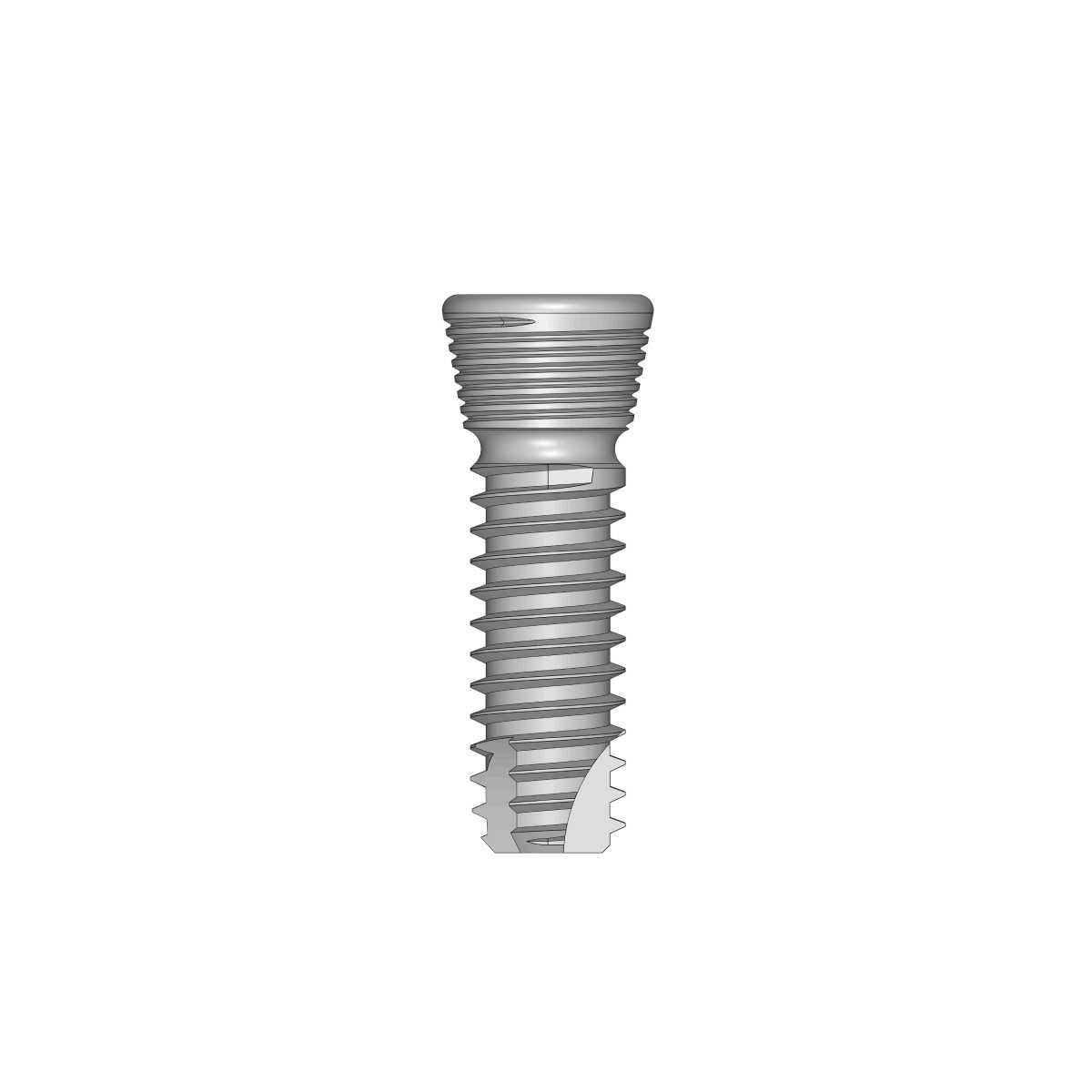

A) 2.7mm Locking Head Screw – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|
| Cat No. | Size | Cat No. |
| 101.310 To 101.350 | 10mm To 50mm | TI.101.310 To Ti.101.350 |
| Stainless Steel | Star Drive | Titanium |
|---|
| Cat No. | Size | Cat No. |
| 101.410 To 101.450 | 10mm To 50mm | Ti.101.410 To Ti.101.450 |
B) Cortical Screw 2.7mm Dia. – Self Tapping
| Stainless Steel | Hex Drive | Titanium |
|---|
| Cat No. | Size | Cat No. |
| 101.106 To 101.140 | 6mm To 40mm | Ti.101.106 To Ti.101.140 |
| Stainless Steel | Star Drive | Titanium |
|---|
| Cat No. | Size | Cat No. |
| 101.710 To 101.740 | 10mm To 40mm | TI.101.710 To Ti.101.740 |
Following Instruments to be use with above Plate:
| Cat No. | Description |
|---|
| 260.210 | Drill Bit – S.S. – Quick Coupling End Dia. 2.0mm X 140mm Long |
| 264.020 | Bone Tap – Quick Coupling End Dia. 2.7mm, Thread Length 33mm, Total Length 100mm |
| 301.124 | Hexagonal Screw Driver with Self Holding Sleeve 2.0mm Tip (for 2.4mm Cortical, Locking & 2.7mm Locking Head Screw) – Silicon Handle |
| 301.108 | Hexagonal Screw Driver 2.0mm Tip – Silicon Handle |
| 301.110 | Small Hexagonal Screw Driver 2.5mm Tip – Silicon Handle |
| 311.004 | Mini Depth Gauge(Measuring length 40mm) |
| 804.120 | LCP Drill Sleeve 2.7mm for 2.0mm Drill Bit |
| 804.122 | Tap for 2.7mm Locking Head Screws |
| 804.162 | Q.C. Torque Screw Driver Handle 2.0mm Tip (Torque 0.8N.m) |
| 804.166 | Hexagonal Screw Driver Q.C. End Shaft, 2.0mm Tip(For Torque Handle 0.8N.M) |
| XP.301.080 | Star Drive Screw Driver 2mm Tip/T-8 |

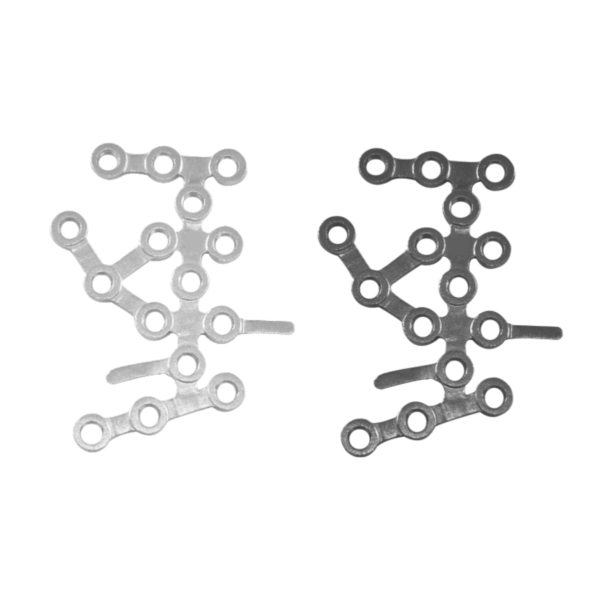

Following Size of Locking Calcaneal Plate 2.7mm are available in Stainless Steel & Titanium Material.
| Cat No. (Stainless Steel) | Right | Length | Cat No. (Titanium) |
|---|
| 137.240 | Small | 40mm | Ti.137.240 |
| 137.250 | Medium | 50mm | Ti.137.250 |
| Cat No. (Stainless Steel) | Left | Length | Cat No. (Titanium) |
|---|
| 137.245 | Small | 40mm | Ti.137.245 |
| 137.255 | Medium | 50mm | Ti.137.255 |
