Description

IS.510DescriptionUnits
550.005Proximal + Distal Aming Device for 5mm, 6mm & 7mm Nails1
550.010Conical Bolt for 5mm, 6mm & 7mm Nail1
710.008Cannulated Socket Wrench – 11mm1
550.015Drill Sleeve for 5mm Nails (8.0mm/2.0mm X 95mm)
550.020Drill Sleeve for 6mm & 7mm Nails (8.0mm/2.7mm X 95mm)1
550.025Trocar 8.0mm (For 5,6,7mm Vet. Nail)1
550.030Drill Bit S.S. Plain Shank 1.5/2.0mm X 160mm1
550.035Drill Bit S.S. Plain Shank 2.0/2.7mm X 200mm1
550.040Bone Tap With T – Handle Extra Long 2.0mm X 200mm1
550.045Bone Tap With T – Handle Extra Long 2.7mm X 200mm1
311.101Extra Long Screw Driver –  1.5mm Tip1
301.112Extra Long Screw Driver 2.5mm Tip – Sillicon Handle1
550.050Steinmann Pin 5.0mm x 250mm1
550.055Steinmann Pin 6.0mm x 250mm1
550.060Steinmann Pin 7.0mm x 250mm1

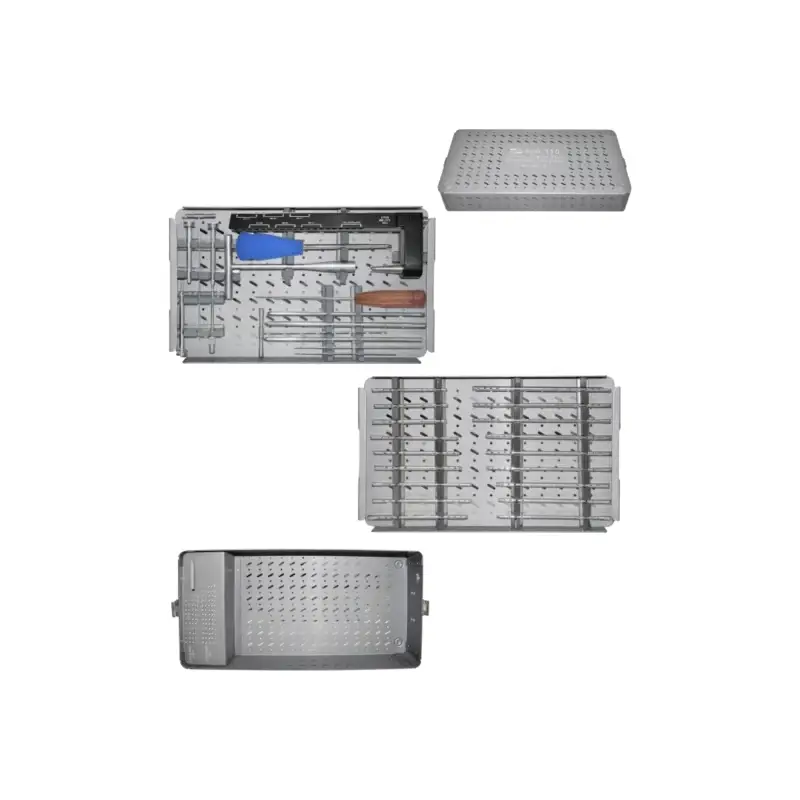

400.115Graphic Aluminium Implant & Instruments Box For Veterinary 5mm, 6mm, & 7mm Nails1
500.05.12Veterinary Interlocking Nails Dia. 5.0mm (Use with 2.0mm Cortical Screw) Length 12cm1
500.05.14Veterinary Interlocking Nails Dia. 5.0mm (Use with 2.0mm Cortical Screw) Length 14cm1
500.05.16Veterinary Interlocking Nails Dia. 5.0mm (Use with 2.0mm Cortical Screw) Length 16cm1
500.05.18Veterinary Interlocking Nails Dia. 5.0mm (Use with 2.0mm Cortical Screw) Length 18cm1
500.05.20Veterinary Interlocking Nails Dia. 5.0mm (Use with 2.0mm Cortical Screw) Length 20cm1
500.05.22Veterinary Interlocking Nails Dia. 5.0mm (Use with 2.0mm Cortical Screw) Length 22cm1
500.06.12Veterinary Interlocking Nails Dia. 6.0mm (Use with 2.7mm Cortical Screw) Length 12cm1
500.06.14Veterinary Interlocking Nails Dia. 6.0mm (Use with 2.0mm Cortical Screw) Length 14cm1
500.06.16Veterinary Interlocking Nails Dia. 6.0mm (Use with 2.0mm Cortical Screw) Length 16cm1
500.06.18Veterinary Interlocking Nails Dia. 6.0mm (Use with 2.0mm Cortical Screw) Length 18cm1
500.06.20Veterinary Interlocking Nails Dia. 6.0mm (Use with 2.0mm Cortical Screw) Length 20cm1
500.06.22Veterinary Interlocking Nails Dia. 6.0mm (Use with 2.0mm Cortical Screw) Length 22cm1
500.07.12Veterinary Interlocking Nails Dia. 7.0mm (Use with 2.7mm Cortical Screw) Length 12cm1
500.07.14Veterinary Interlocking Nails Dia. 7.0mm (Use with 2.7mm Cortical Screw) Length 14cm1
500.07.16Veterinary Interlocking Nails Dia. 7.0mm (Use with 2.7mm Cortical Screw) Length 16cm1
500.07.18Veterinary Interlocking Nails Dia. 7.0mm (Use with 2.7mm Cortical Screw) Length 18cm1
500.07.20Veterinary Interlocking Nails Dia. 7.0mm (Use with 2.7mm Cortical Screw) Length 20cm1
500.07.22Veterinary Interlocking Nails Dia. 7.0mm (Use with 2.7mm Cortical Screw) Length 22cm1
118.206Cortical Screw 2.0mm Dia. – Self Tapping – Length 6mm4
118.208Cortical Screw 2.0mm Dia. – Self Tapping – Length 8mm4
118.210Cortical Screw 2.0mm Dia. – Self Tapping – Legnth 10mm4
118.212Cortical Screw 2.0mm Dia. – Self Tapping – Legnth 12mm4
118.214Cortical Screw 2.0mm Dia. – Self Tapping – Legnth 14mm4
118.216Cortical Screw 2.0mm Dia. – Self Tapping – Legnth 16mm4
118.218Cortical Screw 2.0mm Dia. – Self Tapping – Legnth 18mm4
118.220Cortical Screw 2.0mm Dia. – Self Tapping – Legnth 20mm4
101.106Cortical Screw 2.7mm Dia. – Self Tapping – S.S Length 6mm4
101.108Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 8mm4
101.110Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 10mm4
101.112Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 12mm4
101.114Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 14mm4
101.116Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 16mm4
101.118Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 18mm4
101.120Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 20mm4
101.122Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 22mm4
101.124Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 24mm4
101.126Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 26mm4
101.128Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 28mm4
101.130Cortical Screw 2.7mm Dia. – Self Tapping –  S.S Length 30mm4
